Your First Script

In this guide, you will load the Paracore Examples library, configure dynamic parameters, and execute your first automation. Note: The "TwistingTower" script used here is just to demonstrate Paracore's capabilities. Don't worry about understanding its code yet! We will start from scratch in the Tutorials.

Understanding Units: If you use the [Unit] attribute for a parameter, the engine automatically converts the user's input to Revit internal units (Feet). You don't need to manually convert these values in your logic. However, for output/display (like printing a wall's length in meters), you must convert from internal units to your target unit.

Goal​

Experience Dynamic Execution in action. Run a pre-made script to see how Paracore provides a streamlined environment for parameter orchestration, logic compilation, and instant code execution.

Steps​

1. Connect to Revit​

  1. Open Autodesk Revit 2025+.
  2. Go to the Paracore tab in the ribbon.
  3. Locate the Paracore Server button (it will initially show Off).
  4. Click the icon. The label will change to On and a Revit TaskDialog will appear confirming the connection.
  5. Close the TaskDialog.
Revit Ribbon Tab

2. Launch Paracore Desktop App​

  1. Open the Paracore Desktop App.
  2. Ensure the top bar shows a green Connected status.

3. Add the Script Source​

  1. Download Examples: Download or clone the Paracore-Examples repository to your computer.
  2. Add Local Folder: In the Paracore Sidebar, click the "+" button under Local Folders.
  3. Select the Folder: Navigate inside the repository folder and select the 01_Getting_Started directory.
    • Important: Do not select the root 'Paracore-Examples' folder. You must select a specific sub-folder (Script Source).
  4. Click Select Folder. The "TwistingTower" script will appear in the Gallery.

v3.0.3+: You can select the root Paracore-Examples folder directly. Paracore will automatically discover all script sources inside it (folders containing a .paracore marker file). Switch between sources using the Script Sources dropdown in the Sidebar.

4. Configure Parameters​

  1. Click on the TwistingTower card.
  2. In the Script Inspector, ensure the Parameters tab is active.
  3. Click the Compute (🔄) button next to the BaseLevel and WallType fields to fetch live data from your Revit project.
  4. Select a level and a wall type from the resulting dropdowns.

5. Execute the Script​

  1. Idle State: Ensure Revit is not currently running another command (press Esc a few times).
  2. Click the Run Script button at the bottom of the Parameters tab.

6. Monitor Status​

  1. Look at the Execution Status button. It will turn Green on success.

Expected Result​

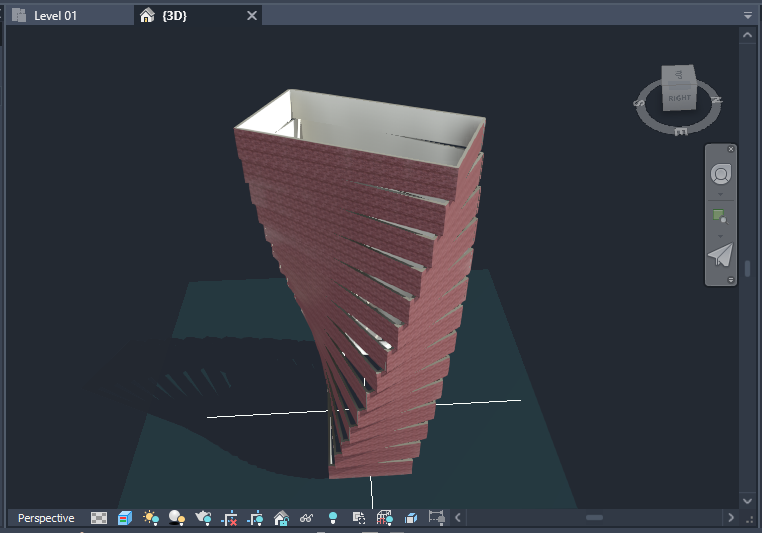

Twisting Tower Result
  1. In Revit: Look at the origin point. A twisting tower structure will be created on all levels above your base level.
  2. In Paracore Desktop: The Console Tab will show: Created twisting house on X levels starting from: Level 1

Next: Explore the Script Gallery features in depth.
