AI-Powered Debugging

Paracore includes a built-in AI assistant designed to help you debug Revit API scripts in seconds. This feature, known as Explain & Fix, uses an LLM (Large Language Model) to analyze execution errors and suggest immediate code corrections.

Explain Fix Button

🛠️ The "Explain & Fix" Workflow​

When a script fails to execute or compile, a red Explain & Fix button appears on the far left of the Console Tab footer. Clicking this button initiates the following process:

1. Analysis​

The AI scans your execution environment. It distinguishes between Single-File Scripts and Multi-File Scripts.

  • For multi-file scripts, it analyzes the entire folder context to understand how your classes and entry points interact.

2. Explanation​

In the Explain & Fix window, the AI provides a natural language summary of why the code failed.

  • It translates complex Revit API or C# exceptions into simple, easy-to-understand explanations.
  • It identifies the specific line and file where the error occurred.

3. Suggested Correction​

The AI generates a complete rewrite of the affected file(s).

  • Code View: You will see the filename followed by the full, corrected code in a syntax-highlighted editor.
  • Review: The code is read-only, allowing you to review the AI's logic before committing the change.

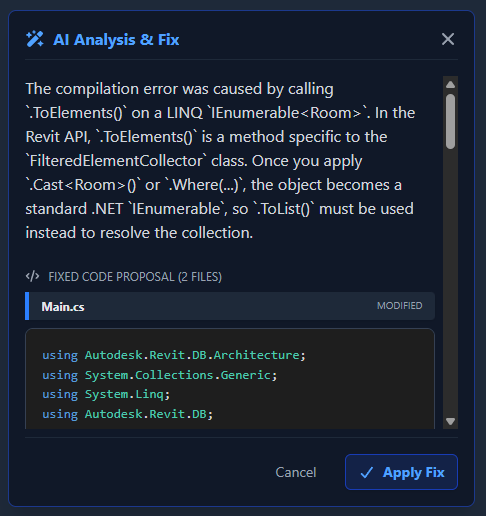

AI Analysis and Fix

4. Direct Application​

Click the Apply Fix button to commit the changes. Paracore handles the file synchronization intelligently:

  • If a Temporary Workspace is open: The fix is applied to the copied script in the temporary workspace. Paracore's file watchers then instantly sync this change back to your original script in the Script Source. This ensures your IntelliSense and the execution engine stay in perfect harmony.
  • If no Workspace is open: The fix is applied directly to the original script file in your library.

In both cases, once you click Apply Fix, you can immediately return to the Parameters Tab and click Run Script again to verify the solution.

🛡️ Privacy & Connectivity​

Connectivity & Configuration​

This feature requires an active internet connection and configured LLM settings in the Settings menu.

  • Supported Providers: Currently, only Google Gemini (models 2.5 and 3.0) and OpenRouter are fully implemented.
  • Other Providers: While Anthropic, DeepSeek, and OpenAI are listed in the settings menu, they are not yet active and will be supported in future updates.

⚠️ Data Privacy & Usage Advisory​

When you use Explain & Fix, your script source code and error logs are transmitted to the active AI provider (e.g., Google Gemini, OpenAI) for analysis.

  • Educational Use Only: This feature is intended for Learning and debugging standard Revit API workflows.
  • Proprietary Code Warning: If you are working on confidential, proprietary, or trade-secret algorithms, we do not recommend using this feature, as third-party providers may use submitted data for model training depending on their policies.
  • Your Risk: Use this feature with the understanding that you are sharing your code logic with the AI provider.

Note: Your Revit Model Data (geometry, element parameters, project files) remains entirely local and is never transmitted to the cloud.

Next: Learn about the core Script Execution lifecycle.
