VS Code Integration

Paracore provides a professional development experience by leveraging Visual Studio Code. Depending on your workflow, Paracore handles script editing in two fundamentally different ways to balance Script Management with Developer Experience.

🏗️ The IntelliSense Model​

In Revit automation, IntelliSense requires reference assemblies and project metadata. Paracore handles this automatically by generating Workspaces.

Workspace Anatomy​

When a workspace is generated, it contains the following files:

  • [ScriptName].csproj: The C# project file that handles Revit API references.
  • [ScriptName].sln: The solution file for the project.
  • Global.cs: A generated file that provides IntelliSense for injected globals like Doc and Println.
  • Scripts/ (Folder): The most important directory. All source code files must live inside this folder.

🛠️ Workflow 1: Via Paracore Desktop App (Managed Isolation)​

This workflow is optimized for users managing a large library of scripts within the Paracore Gallery.

1. The Solution: Temporary Workspaces​

To keep your library clean, Paracore uses a Copy & Sync strategy:

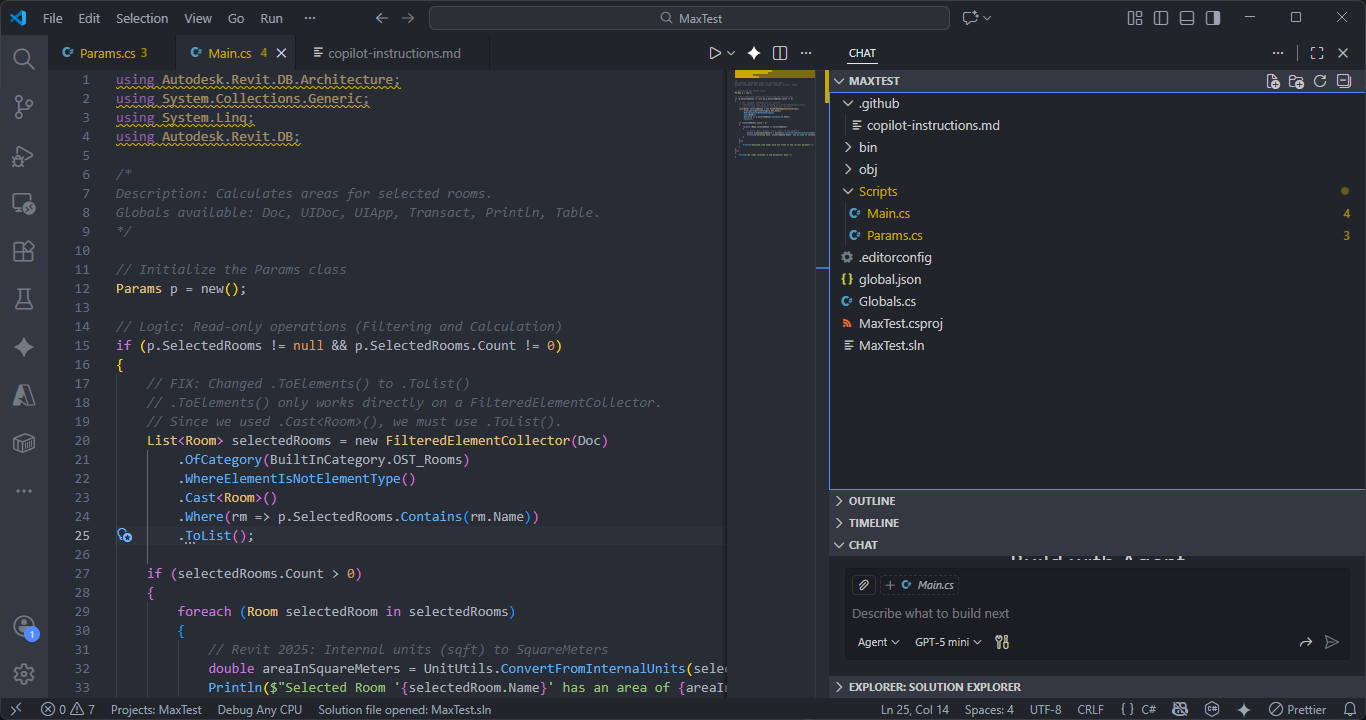

  • Isolation: When you click Edit Script, Paracore copies only your source code to a temporary directory and scaffolds the project files listed above.
  • Location: In the VS Code Explorer, you will find your script(s) inside the Scripts/ folder.
  • Live Sync: You edit the files inside the Scripts/ folder. Every time you save, Paracore's file watchers instantly sync the changes back to the original script in your source folder.

🛑 Sync Safety: Renaming Scripts Because the link between the temporary copy and the original is name-based, you must close the workspace in VS Code before renaming a script in the Gallery.

🚀 Workflow 2: Standalone Extension (Optional Developer Path)​

This workflow is for developers who manage their own project structures manually.

1. Permanent Workspaces​

The Standalone Extension assumes you are managing your own files:

  • Direct Editing: You open your own folder and run CoreScript: Initialize Workspace.
  • Structure: The extension generates the same .csproj, sln, and Scripts/ folder structure directly inside your folder.
  • Execution: When you run Ctrl+Shift+R, the code is sent directly from your active window to Revit.

🛡️ Global Helpers​

When writing code in either workflow, you have access to these injected globals:

HelperDescription
DocThe current active Revit Document.
UIAppThe Revit UIApplication instance.
Println(msg)Prints a message to the Console.
Transact(action)Automatically handles Revit Transactions.
Table(data)Sends a list of objects to the Table Tab grid.
BarChart(data)Renders data as a Bar Chart in the Table Tab.
